Toyo Tires M147™
Buy Now Request a Quote Tire Fitment Guide

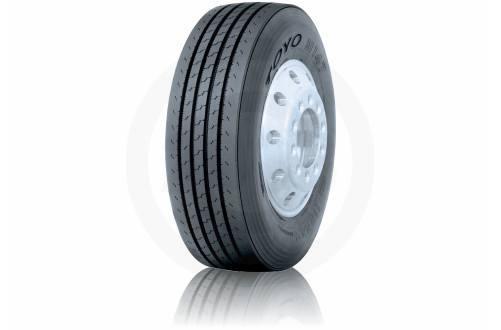

Click here to view full image.
Buy Now Request a Quote Tire Fitment Guide
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

Fights irregular wear.


Premium radial designed for steer axle Long Haul Highway operations.


Unique Side Differential Groove™ (SDG) assures improved resistance to irregular wear.


Toyo’s best long haul steer tire is ideally suited to over the highway free rolling applications.

  • Minimized Irregular Wear: New Side Differential Groove™ (SDG) help prevent irregular wear. DSOC II™ technology optimizes design for even wear and long life.
  • Enhanced Handling Performance: Five-rib, four-groove design with deep 19/32” tread depth. Computer optimized tread design. Multi-pitch groove stabilizes tread ribs.
  • Durability and Enhanced Retreadability: Four Steel Belt Construction braces the tread area for improved mileage, resistance to irregular wear and reduced rolling resistance. Stone ejector grooves minimize stone retention to maintain casing integrity. Butyl inner-liner resists air permeation through the casing.

Specifications

295/75R22.5
Tire Size 295/75R22.5
Load Range G
Tread Depth 19
Revs per Mile 517
Ply 14
Max Tire Load (Single) 6175
Max Tire Load (Dual) 5675
Overall Width 11.1
Overall Diameter 40.2
285/75R24.5
Tire Size 285/75R24.5
Load Range G
Tread Depth 19
Revs per Mile 502
Ply 14
Max Tire Load (Single) 6175
Max Tire Load (Dual) 5675
Overall Width 11.1
Overall Diameter 41.3
11R22.5
Tire Size 11R22.5
Load Range G
Tread Depth 19
Revs per Mile 501
Ply 14
Max Tire Load (Single) 6175
Max Tire Load (Dual) 5840
Overall Width 11.1
Overall Diameter 41.3
11R22.5
Tire Size 11R22.5
Load Range H
Tread Depth 19
Revs per Mile 501
Ply 16
Max Tire Load (Single) 6610
Max Tire Load (Dual) 6005
Overall Width 11.1
Overall Diameter 41.3
11R24.5
Tire Size 11R24.5
Load Range G
Tread Depth 19
Revs per Mile 478
Ply 14
Max Tire Load (Single) 6610
Max Tire Load (Dual) 6005
Overall Width 11.1
Overall Diameter 43.4
11R24.5
Tire Size 11R24.5
Load Range H
Tread Depth 19
Revs per Mile 478
Ply 16
Max Tire Load (Single) 7160
Max Tire Load (Dual) 6610
Overall Width 11.1
Overall Diameter 43.4

Compare Models

 Print








Manufacturer Toyo
Model M147™
Style Commercial
General
Tire Size
Load Range
Tread Depth
Max Speed
Revs per Mile
Ply
Max Tire Load (Single)
Max Tire Load (Dual)
Overall Width
Overall Diameter
